Stable Automotive Angle Position Sensor Dual Signal Flexibility Voltage PWM Signal

Model Number : TIA-C03S0301

Place of Origin : China

MOQ : 1000 pieces

Packaging Details : According to size and volume

Delivery Time : generally 2-3 months（Special orders can be processed separately)

Payment Terms : T/T

Supply Ability : 20,000 pieces per month

Contact Now

TIA-C03S0301 PBT+GF30 Angle Position Sensor
Dual Voltage/PWM Signal Automotive Position Monitoring Component
Product Overview
The TIA-C03S0301 Angle Position Sensor is a high-performance component engineered to accurately detect angle and position data for automotive systems. Built with PBT+GF30 (a reinforced, heat-resistant composite), it delivers reliable operation in extreme environments—working seamlessly between -40℃ to 125℃ with safe storage up to -50℃~150℃.
Operating on 5±0.5V voltage with <10mA low power consumption, this sensor supports dual Voltage/PWM signal output for flexible integration with most vehicle ECUs. Its ±1.5% linear accuracy ensures precise, real-time data transmission, making it ideal for enhancing the stability and responsiveness of critical automotive systems. The rugged PBT+GF30 construction resists vibration, wear, and corrosion, ensuring long-term durability in harsh driving conditions.
Technical Specifications
Model TIA-C03S0301
Material PBT+GF30
Operating Temperature -40℃ to 125℃
Storage Temperature -50℃ to 150℃
Operating Voltage 5±0.5V
Operating Current <10mA
Signal Output Voltage/PWM
Linear Accuracy ±1.5%
Core Function Automotive Angle & Position Monitoring

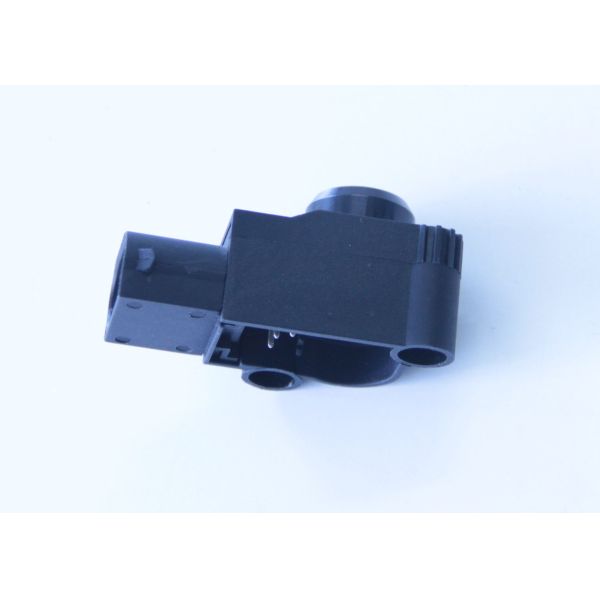

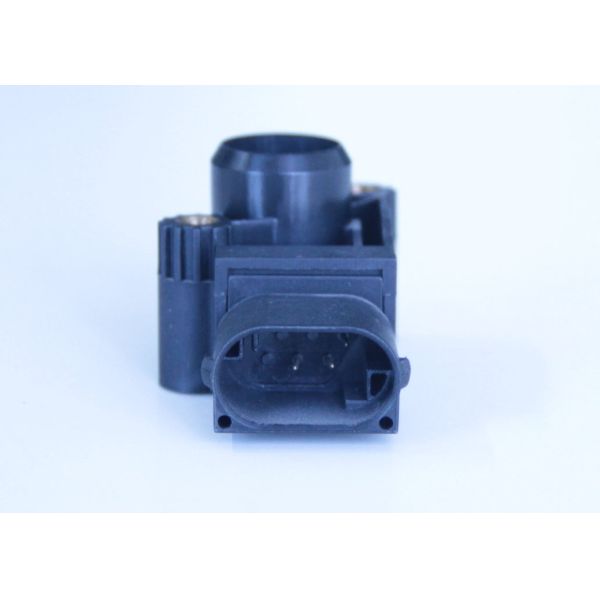

Stable Automotive Angle Position Sensor Dual Signal Flexibility Voltage PWM Signal Stable Automotive Angle Position Sensor Dual Signal Flexibility Voltage PWM Signal
Key Advantages
  • Wide Temperature Resilience: Stable performance in -40℃~125℃ working temperatures (stores at -50℃~150℃), compatible with vehicles in global extreme climate zones.
  • Dual Signal Flexibility: Supports Voltage/PWM output, enabling seamless adaptation to diverse vehicle electronic control systems.
  • Reinforced Durability: PBT+GF30 material offers high mechanical strength, vibration resistance, and wear resistance for long-term use in complex road conditions.
  • Low Power & High Precision: <10mA operating current minimizes energy consumption, while ±1.5% linear accuracy ensures reliable angle/position data.
Application Scenarios
Ideal for angle/position monitoring in:
  • Suspension Systems: Front/rear suspension angle detection for adaptive suspension control
  • Steering Systems: Steering angle monitoring to enhance handling stability
  • Transmission/Chassis Components: Position detection for shift mechanisms or chassis adjustment systems
